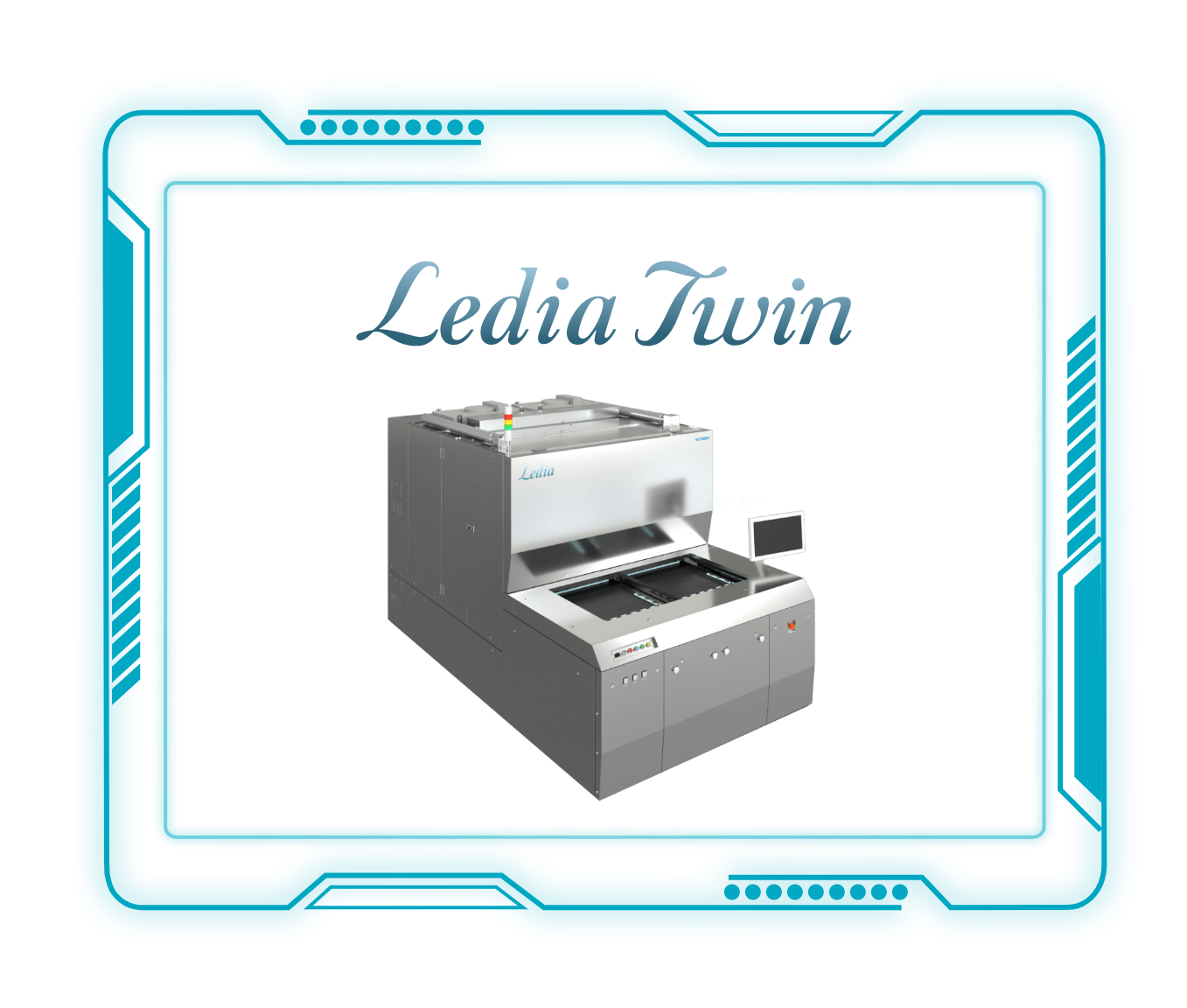

LEDIA TWIN 直接描画装置 カタログ rin

Ledia Twin is the best choice for high
quality and maximum productivity
3-wavelength LED light source
SRO = Φ60 μm L / S = 30/30 μm
Position accuracy ± 10 μm

Twin stage

By connecting two units, it is possible to continuously expose the front surface with one unit and continuously expose the back surface with the other unit

Both front and back sides can be exposed with one unit

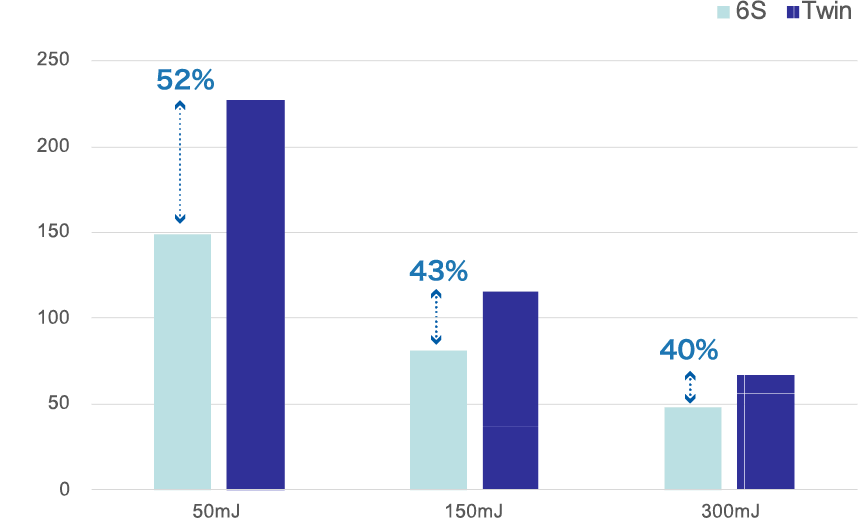

50% increase in productivity

Optical head unit

*Board size is 21inch(X) * 18inch(Y)
*Alignment marks : 4 points as 6.4 seconds
*Calibration not included
The productivity is subject to change without notice.

Multiple surfaces same time

With twin stages, you can efficiently set multiple faces

Optical head unit

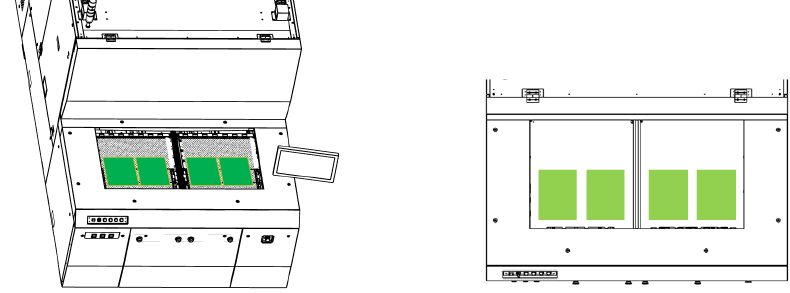

2sheets left and right

Optical head unit

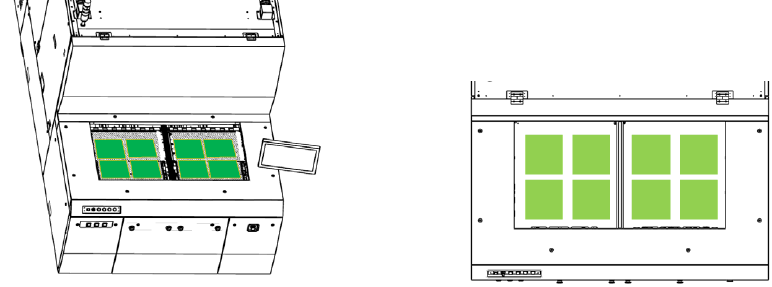

4sheets left and right

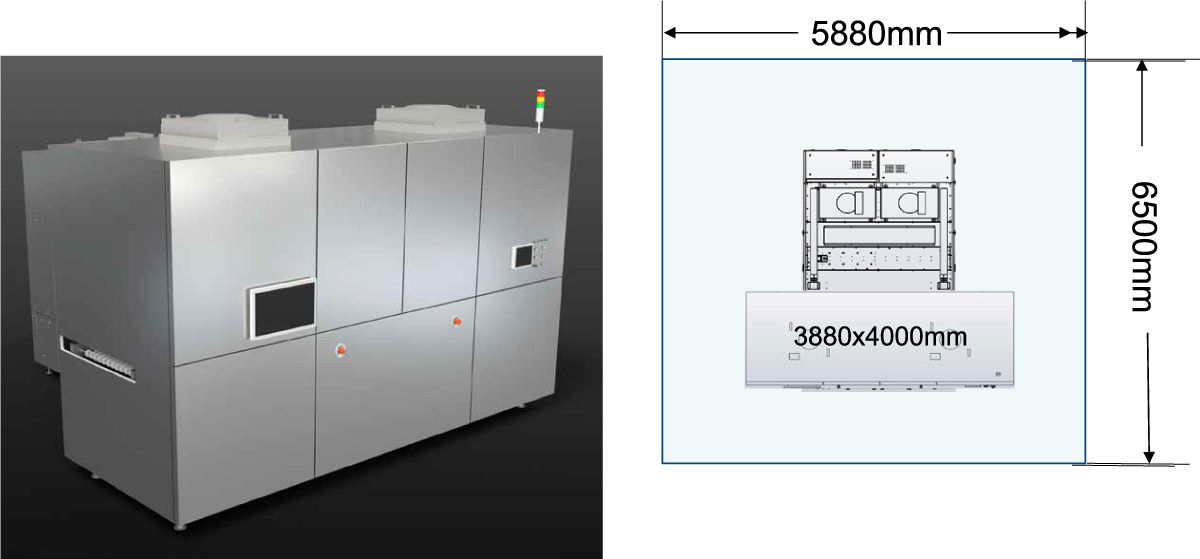

Automatic lines with minimal space

Optical head unit

Front and back lines can be
installed in this space

Automation Support Functions

Optical head unit

Mechanism introduction

Optical head unit

Head unit composed of 3 wavelengths of DMD and UV-LED (365 + 385 + 405nm)

Equipped with up to 6 heads like Ledia 6

Achieve exposure conditions suitable for any resist
by freely manipulating 3 wavelengths in % units

Alignment unit

Achieves extremely high alignment accuracy

Equipped with various drawing data corrections,
and also follows measurement results

On a specific board, you put multiple sheets on the stage
and can exposed at once.

Auto focus unit

Follows the warp of the board and always optimizes the focus position

Can be used without following through holes

Correct in real time without pausing the stage

Calibration unit

Regularly calibrate the alignment camera, exposure head, etc.

Aligns and achieves accurate patterning
