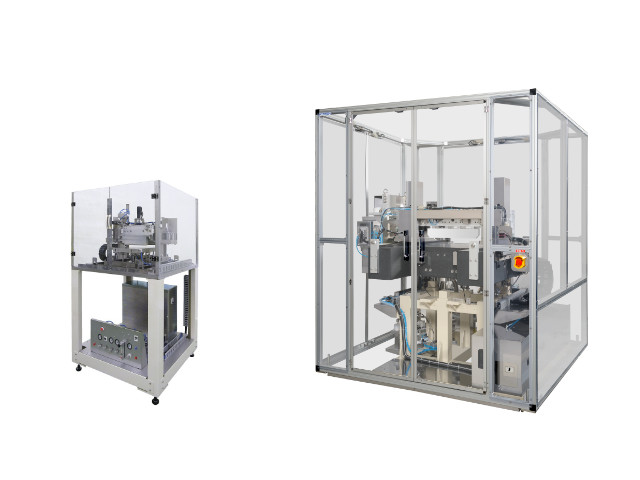

Research Coater LC-R300G/400G
Compact slit coater that flexibly responds to all coating conditions and materials and achieves exceptional coating uniformity
Features
- Compact and easy-to-introduce experimental equipment that has been well received for experimental use in development departments and university institutions.
- Inheriting the high-precision coating technology of LinearcoaterTM, the No.1 slit coater for display.
- Due to its liquid feed method that employs a super-low volume pump, testing with the LC-R300G is possible with as little as 50 cc (15-cc pipe capacity) of coating material.
- In addition to coating of the entire surface, stripe coating, intermittent coating and block coating are possible.
- Vacuum Dry Chamber and Hot Plate are also available (option).
- Installation of the LC-R300G in an environmental chamber enables coating tests under an environment in which oxygen, moisture, and other parameters are controlled.
Supports coating tests to mass production
- At our facilities, we accept application evaluation and coating tests for base materials, coating materials, and coating conditions according to customer requirements.
- Experienced process engineers provide full support for equipment tuning to ensure desired uniformity without uncoating or application unevenness.
- We support mass production with a diverse lineup of Linearcoater™ series.
Click here for related product information - Please contact us for contracted services.
Basic specifications
| Model name |
LC-R300G
|
LC-R400G
|
| Coating method |
Slit coater (Die coater)
|
|
| Substrate type |
Glass, resin, film, metal foil, etc.
|
|
| Substrate size |
Max. W300 x L300 mm
|
W50 x L50 to W400 x L500 mm
|
| Suitable viscosity |
1 to 10,000 mPa・s |
|
| Dimensions （W×D×H） |
910 x 940 x 1,700 mm |
1,758 x 2,000 x 2,150 mm
|
