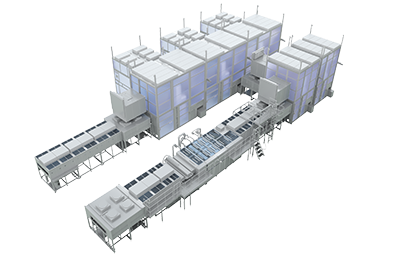

Coater Line SK-P series
for flexible substrate formation
SK-P series are designed to handle coating of high-viscosity polyimide varnishes of several thousand mPa・s, allowing them to form the extremely thin films needed for flexible substrates.
Since SK-P series perform everything from cleaning large glass support substrates to polyimide material coating and drying, they improve productivity in mass production dramatically.
Features
- Industry-leading line takt of 120 seconds or less.
- The LinearcoaterTM slit-type coating system has been relaunched as a Polyimide coater for flexible display with outstanding coating uniformity.
- In addition to conventional thick films, thin films of just 5 μm can be formed. (when dry, guaranteed under prescribed conditions)
- Resolves various issues that occur during the manufacturing process for OLED panels, including the generation of organic contaminants, minute particles and static electricity.
Specifications
| SK-P1501G | SK-P2200G | |
| Substrate size* | G6 1,500x1850mm |
G8 2200x2500mm 2250x2600mm 2290x2620mm |
| Line takt times | 120 sec. or less | |
| Coating uniformity | 3% or less | |
| Coating thickness | 5 to 20μｍ when dry （guaranteed under prescribed conditions） |
|
| Substrate temp. uniformity | ±2℃ （HVCD） |
|
* Please contact us for systems that support substrate sizes less than the 6th generation.
