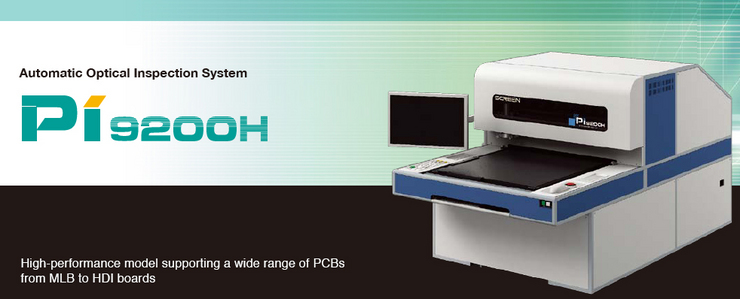

Automatic Optical Inspection System PI-9200H


  1. World number one throughput As of March 31, 2014 (According to our own research)

    The PI-9200H is equipped with SCREEN’s independently developed image processing unit, providing the world's number one inspection throughput. High-precision digital interpolation technology and a highly reliable inspection algorithm ensure stable inspection with fewer false calls.

  2. Support for a wide range of board types

    This system is able to handle a full range of PCBs from MLB to HDI board. It is also equipped with functions that reduce the effect of back side pattern on thin substrates and a suction table that accommodates various different boards. These features give the PI-9200H the ability to process everything from rigid to flexible circuit boards.

*Based on Screen standard conditions

AOI setup system「EzPreX」

Faster pre-inspection setup without specialized skills

The EzPreX is installed as a standard function, enabling the rapid and automatic setting of optimal values for thickness, alignment, threshold and other parameters. The EzPreX uses a proprietary algorithm to achieve extremely quick and accurate setup. The EzTune is also available, allowing the operator to perform final adjustment while viewing the screen. Used together, these functions greatly reduce operator workload.

Hardware-less Verification System「iSift」

Post-inspection verification of defects can be performed using a network PC. Defect images are displayed as thumbnails in real-time starting with scanned areas, allowing them to be efficiently assessed and classified as accepted or rejected using the mouse. Using this system to sort defects before starting verification in VT series equipment significantly improves processing efficiency and shortens the verification time.
