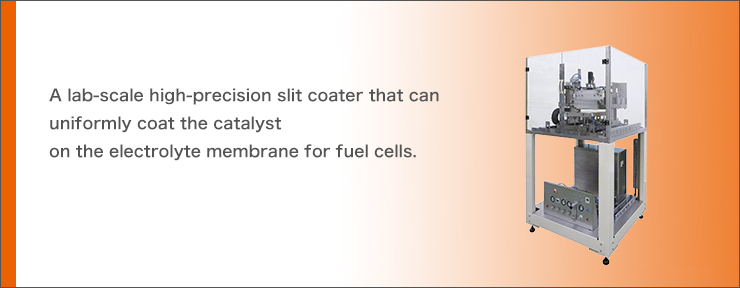

Manual Coater Research Coater LC-R300M
Features
- SCREEN's long experience with the technology required for coating systems for display has led to the development of a proprietary coating die with exceptional coating uniformity.
- Testing with the LC-R300M is possible with as little as 50 cc (15-cc pipe capacity) of coating material.
- Two-side coating is possible.
Specification
| Model name |
LC-R300M
|
|
| Coating method |
Slit coating (Die coating)
|
|
| Base material |
Electrolyte membrane
|
|
| Base material size |
Max. W300ｘL300 mm
|
|
| Coating size |
Max. W240 x L240mm
|
|
| Suitable viscosity |
１～2,000CP |
|
| Dimensions（WxDxH) |
910 x 940 x 1,700 mm |
|
* Linearcoater is a registered trademark and/or a trademark of SCREEN Holdings Co., Ltd.
